RESOLUTION
0.1°

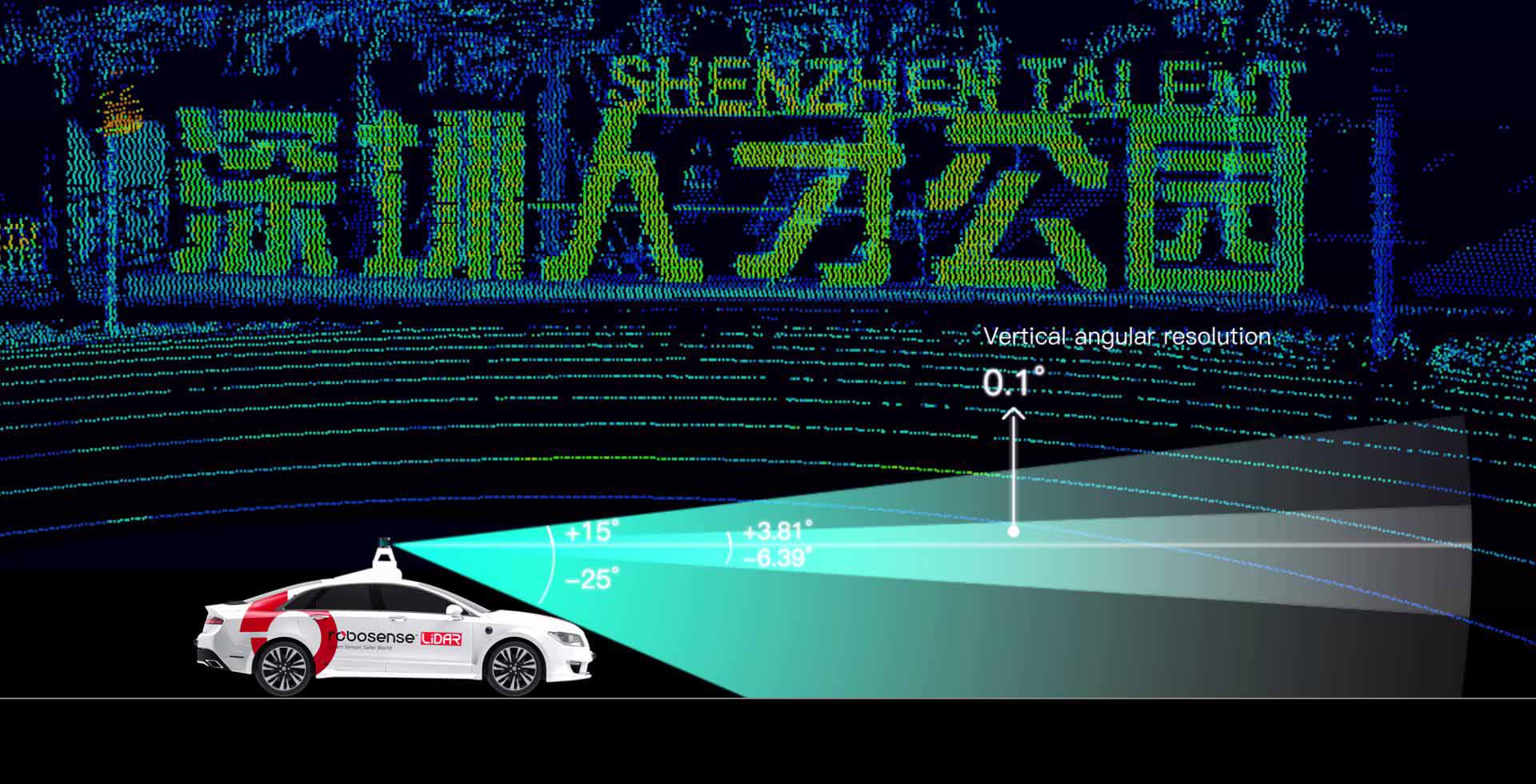

Pixel-level scanning with minimum angular resolution 0.1°
VERTICAL FOV
Vertical field of view:40°

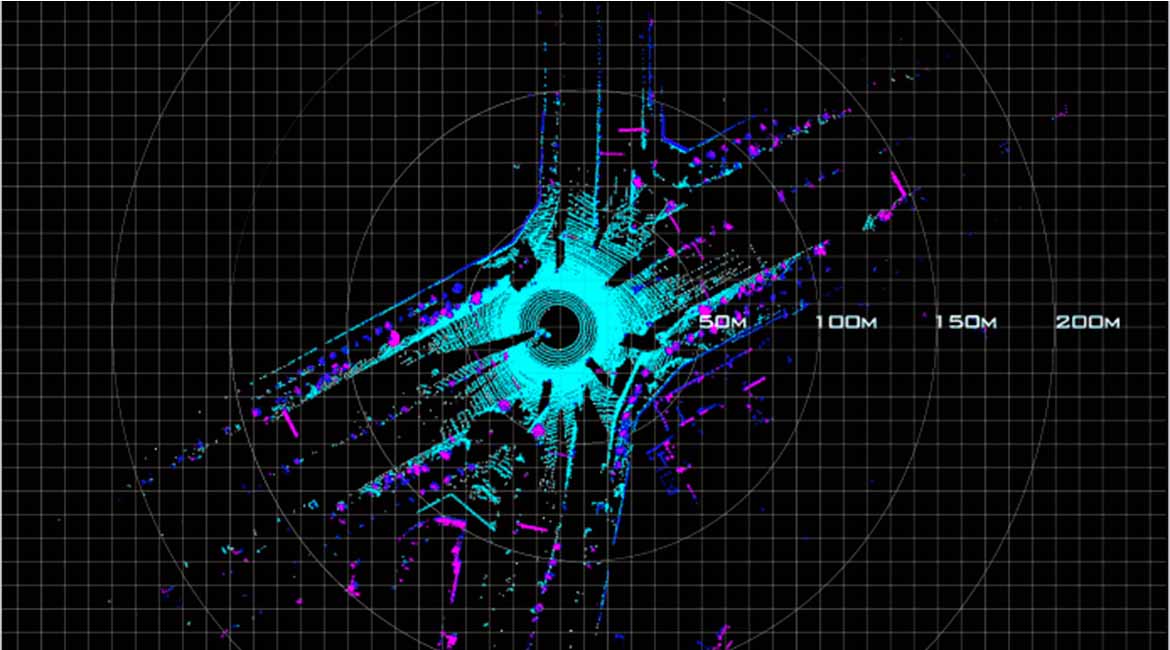

MEASUREMENT RANGE
200M
Best-in-class perception with measurement range up to 250m (200m@10% reflectivity)

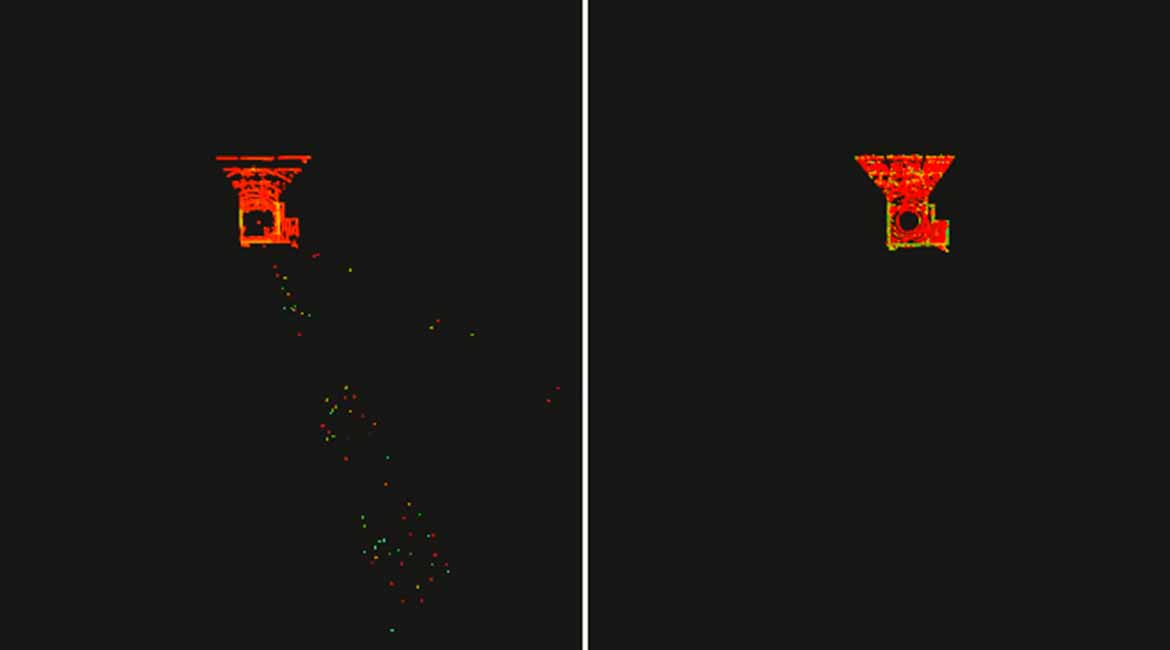

ANTI-INTERFERENCE
Anti-interference capability
under multi-LiDAR jamming & various ambient lights

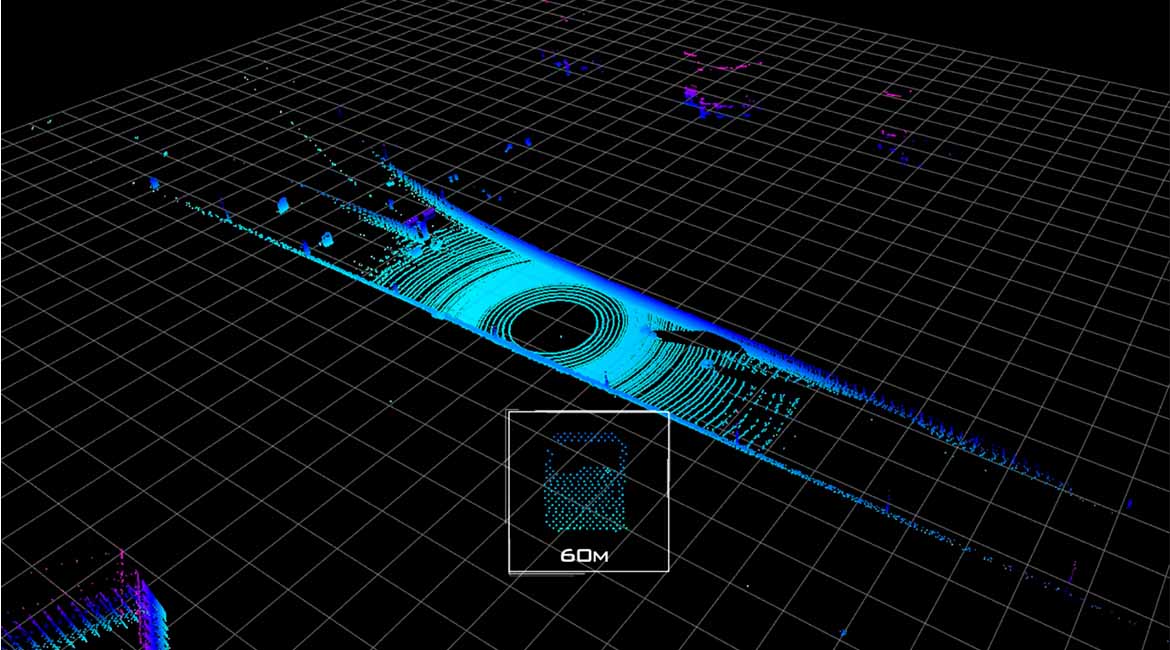

Videos
Video

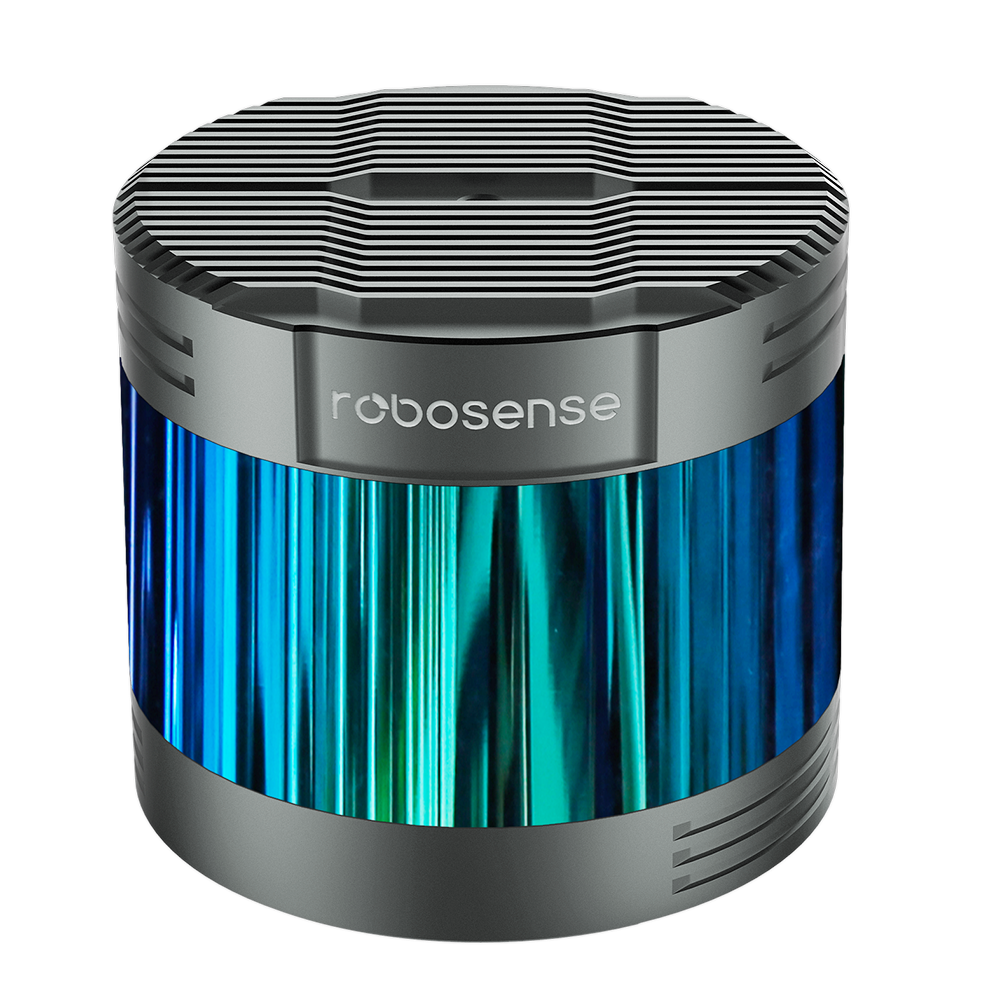

Product Specifications
# of Lines 128 Laser Wavelength 905nm
Laser Safety Class 1 eye safe Blind Spot ≤0.4m
Range 250m(200m@10% NIST)  Range Accuracy(Typical) Up to ±3cm
Horizontal FoV 360° Vertical FoV 40°
Horizontal  Resolution 0.2°/0.4° Vertical Resolution Up to 0.1°
Frame Rate 10Hz/20 Hz Rotation Speed 600/1200rpm (10/20Hz)
Points Per Second ~2,304,000pts/s(Single Return)   ~4,608,000pts/s(Dual Return)  UDP Packet include Spatial Coordinates, Intensity, Timestamp, etc.
Ethernet Connection 1000 Mbps Output UDP packets over Ethernet
Operating Voltage 19V - 32V Operating Temperature -30°C ~ +60°C
Power Consumption 45W Storage Temperature -40°C ~ +85°C
Ingress Protection IP67 Time Synchronization PTP
$GPRMC with 1PPS
Dimension φ166mm *  H148.5 mm Weight (without cabling) ~3.75 kg
